Wrekin SX40 40kN Biaxial Geogrid 4.5 x 30m Roll
SKU: WSX40450

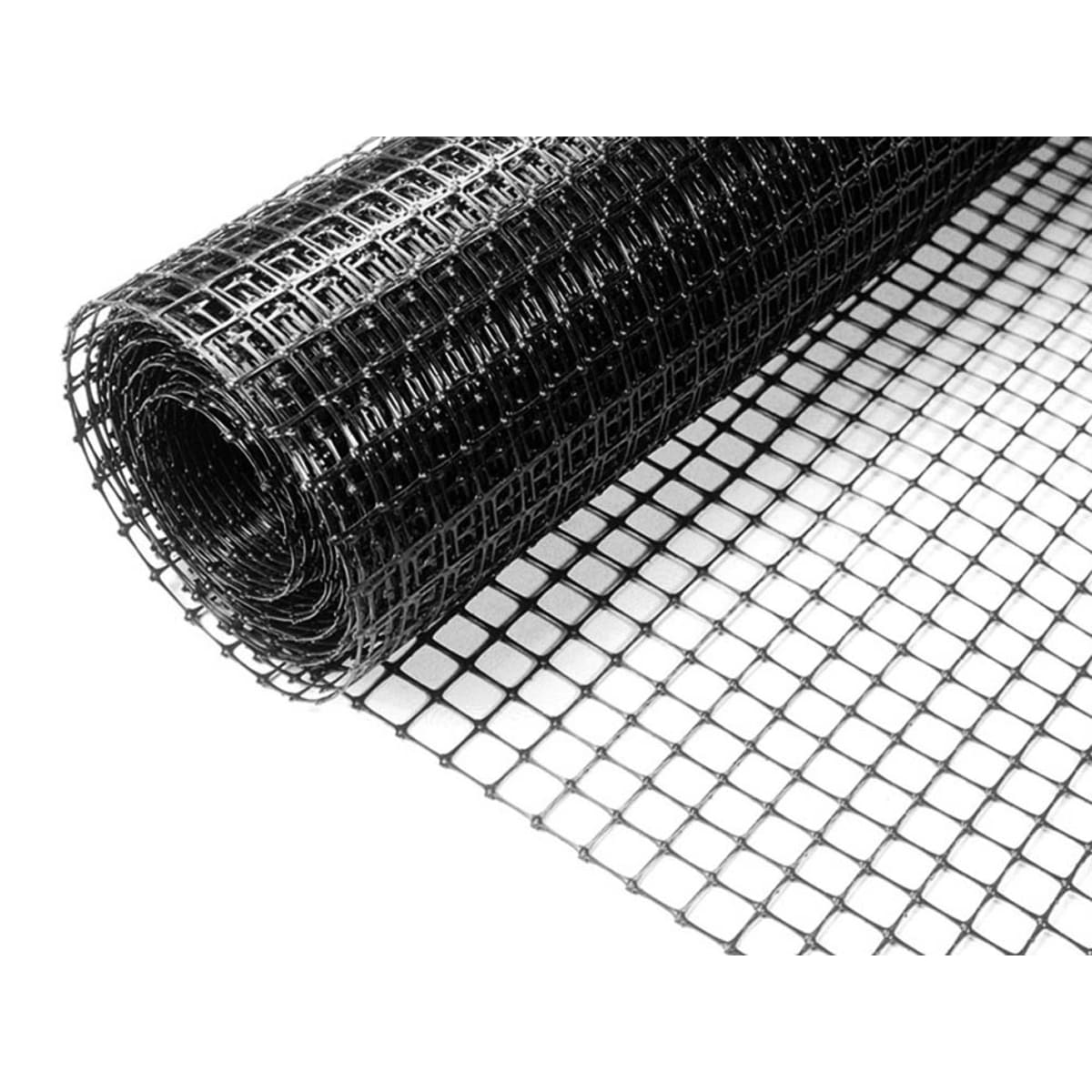

The Wrekin SX40 Biaxial Geogrid 4.5 x 30m (W x L) with 40kN tensile strength provides a cost-effective omni-axial reinforcement solution to granular sub-bases, capping layers and railway ballasts in areas of weak or variable soils. The versatile SX Grid allows granular particles to be compacted over them, partially penetrating and projecting through the apertures (opening size 38mm x 38mm).
Features & benefits
- Helps minimise the likelihood of repairs
- Very low maintenance required
- Can reduce construction time, costs and even CO2e
- Cost-effective system
- Tensile Strength - 40kN
IDWSX40450
Geotechnical & Membranes > Ground Stabilisation > Geogrids > Wrekin SX40 40kN Biaxial Geogrid 4.5 x 30m Roll
https://www.frazersolutions.co.uk/p/wrekin-sx40-40kn-biaxial-geogrid-4-5-x-30m-roll-WSX40450
The Wrekin SX40 Biaxial Geogrid 4.5 x 30m (W x L) with 40kN tensile strength provides a cost-effective omni-axial reinforcement solution to granular sub-bases, capping layers and railway ballasts in areas of weak or variable soils. The versatile SX Grid allows granular particles to be compacted over them, partially penetrating and projecting through the apertures (opening size 38mm x 38mm).
Features & benefits
- Helps minimise the likelihood of repairs
- Very low maintenance required
- Can reduce construction time, costs and even CO2e
- Cost-effective system
- Tensile Strength - 40kN
Specifications
| Product Name | Wrekin SX40 40kN Biaxial Geogrid 4.5 x 30m Roll |
| Brand | Wrekin |
| Product Type | Geogrid |
| Manufacturer Name | Wrekin Products Ltd |
| Manufacturer Part Number | GGSXGRID/40 |
| Compliance Approvals | EN ISO 10319 |
| Materials | Polypropylene |
| Commercial Or Domestic Use | Commercial |
| Range | SX Grid |
| Model Number | 4040 |
| Colour | Black |
| Application | Civils |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Applicable Standards | CE, UKCA |
| Recyclable | Yes |
| Renewable | Yes |
| Product Width | 4500 mm |
| Product Weight | 52 kg |
| Product Length | 30000 mm |
