Wrekin SX20 20kN Biaxial Geogrid 4 x 50m Roll
SKU: WSX20450

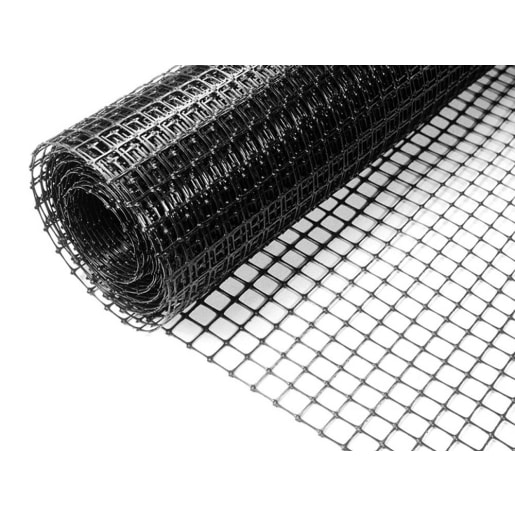

The Wrekin SX20 Biaxial Geogrid 4 x 50m (W x L) with 20kN tensile strength provides a cost-effective omni-axial reinforcement solution to granular sub-bases, capping layers and railway ballasts in areas of weak or variable soils. The versatile SX Grid allows granular particles to be compacted over them, partially penetrating and projecting through the apertures (opening size 38mm x 38mm).
Features & benefits
- Helps minimise the likelihood of repairs
- Very low maintenance required
- Can reduce construction time, costs and even CO2e
- Cost-effective system
- Tensile Strength - 20kN
IDWSX20450
Geotechnical & Membranes > Ground Stabilisation > Geogrids > Wrekin SX20 20kN Biaxial Geogrid 4 x 50m Roll
https://www.frazersolutions.co.uk/p/wrekin-sx20-20kn-biaxial-geogrid-4-x-50m-roll-WSX20450
The Wrekin SX20 Biaxial Geogrid 4 x 50m (W x L) with 20kN tensile strength provides a cost-effective omni-axial reinforcement solution to granular sub-bases, capping layers and railway ballasts in areas of weak or variable soils. The versatile SX Grid allows granular particles to be compacted over them, partially penetrating and projecting through the apertures (opening size 38mm x 38mm).
Features & benefits
- Helps minimise the likelihood of repairs
- Very low maintenance required
- Can reduce construction time, costs and even CO2e
- Cost-effective system
- Tensile Strength - 20kN
Specifications
| Product Name | Wrekin SX20 20kN Biaxial Geogrid 4 x 50m Roll |
| Brand | Wrekin |
| Product Type | Geogrid |
| Manufacturer Name | Wrekin Products Ltd |
| Manufacturer Part Number | GGSXGRID/20 |
| Compliance Approvals | EN ISO 10319 |
| Materials | Polypropylene |
| Commercial Or Domestic Use | Commercial |
| Range | SX Grid |
| Model Number | 2020 |
| Colour | Black |
| Application | Civils |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Applicable Standards | CE, UKCA |
| Recyclable | Yes |
| Renewable | Yes |
| Product Width | 4000 mm |
| Product Weight | 40 kg |
| Product Length | 50000 mm |
Downloads
Product information
- 1 MB
