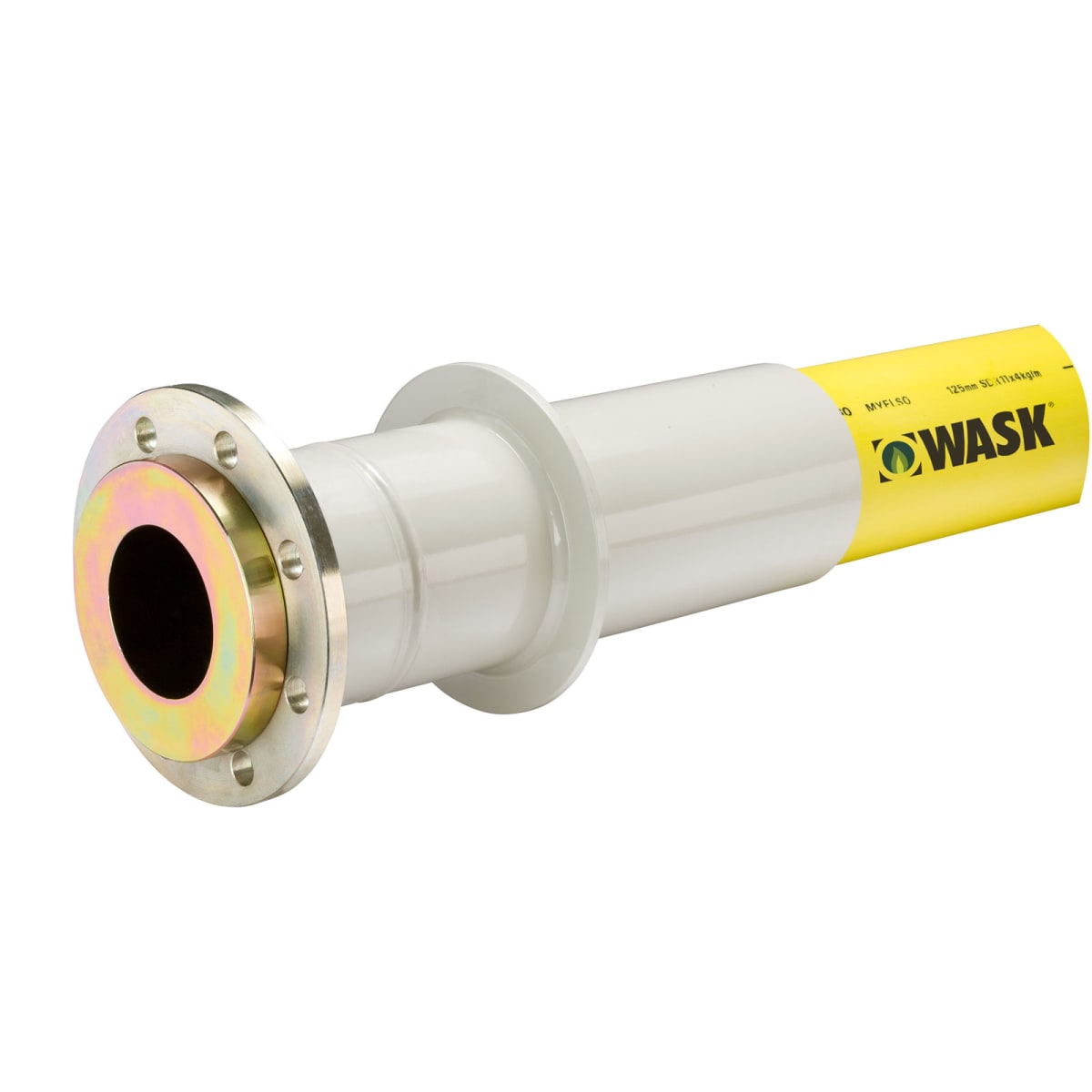

Wask AD2026 Pecat Governor Riser 80-90mm Flanged
SKU: DRMGG112
The Wask AD2026 Pecat Governor Riser 80 - 90mm is an entry fitting for use with above ground governor modules eliminating the need for fabricated steel legs and transition fittings.
Features & benefits
- Incorporates a steel puddle flange, enabling the fitting to be set firmly into a concrete base providing a secure anchoring point and preventing movement.
- Above ground PE pipe is protected by a continuous outer steel sleeve in accordance with IGE regulations
- Alignment with the governor module is guaranteed as the distance between the puddle flange and the connecting flange is uniform for all sizes within the range
- MOP 7.0 Bar (PE100 SDR11)
IDDRMGG112
Multi-Utilities > Gas > Gas Fittings > Wask AD2026 Pecat Governor Riser 80-90mm Flanged
https://www.frazersolutions.co.uk/p/wask-ad2026-pecat-governor-riser-80-90mm-flanged-DRMGG112
The Wask AD2026 Pecat Governor Riser 80 - 90mm is an entry fitting for use with above ground governor modules eliminating the need for fabricated steel legs and transition fittings.
Features & benefits
- Incorporates a steel puddle flange, enabling the fitting to be set firmly into a concrete base providing a secure anchoring point and preventing movement.
- Above ground PE pipe is protected by a continuous outer steel sleeve in accordance with IGE regulations
- Alignment with the governor module is guaranteed as the distance between the puddle flange and the connecting flange is uniform for all sizes within the range
- MOP 7.0 Bar (PE100 SDR11)
Specifications
| Product Name | Wask AD2026 Pecat Governor Riser 80-90mm Flanged |
| Brand | Wask |
| Product Type | PE Riser |
| Manufacturer Name | Wask |
| Manufacturer Part Number | METGG112 |
| Compliance Approvals | GIS/PL3:2014 |
| Warranty Period | 12 months |
| Materials |
Mild steel
PE |
| Commercial Or Domestic Use | Commercial |
| Model Number | AD2026 |
| Colour | Beige |
| Application | Above ground |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Applicable Standards | BSI Kite Mark KM535530. |
| Finish | Epoxy Polyester |
| Recyclable | No |
| Renewable | No |
| Product Width | 200 mm |
| Product Length | 1035 mm |
| Diameter | 90 mm |
| Jointing System | Electrofusion |
| Connector Type | male |
