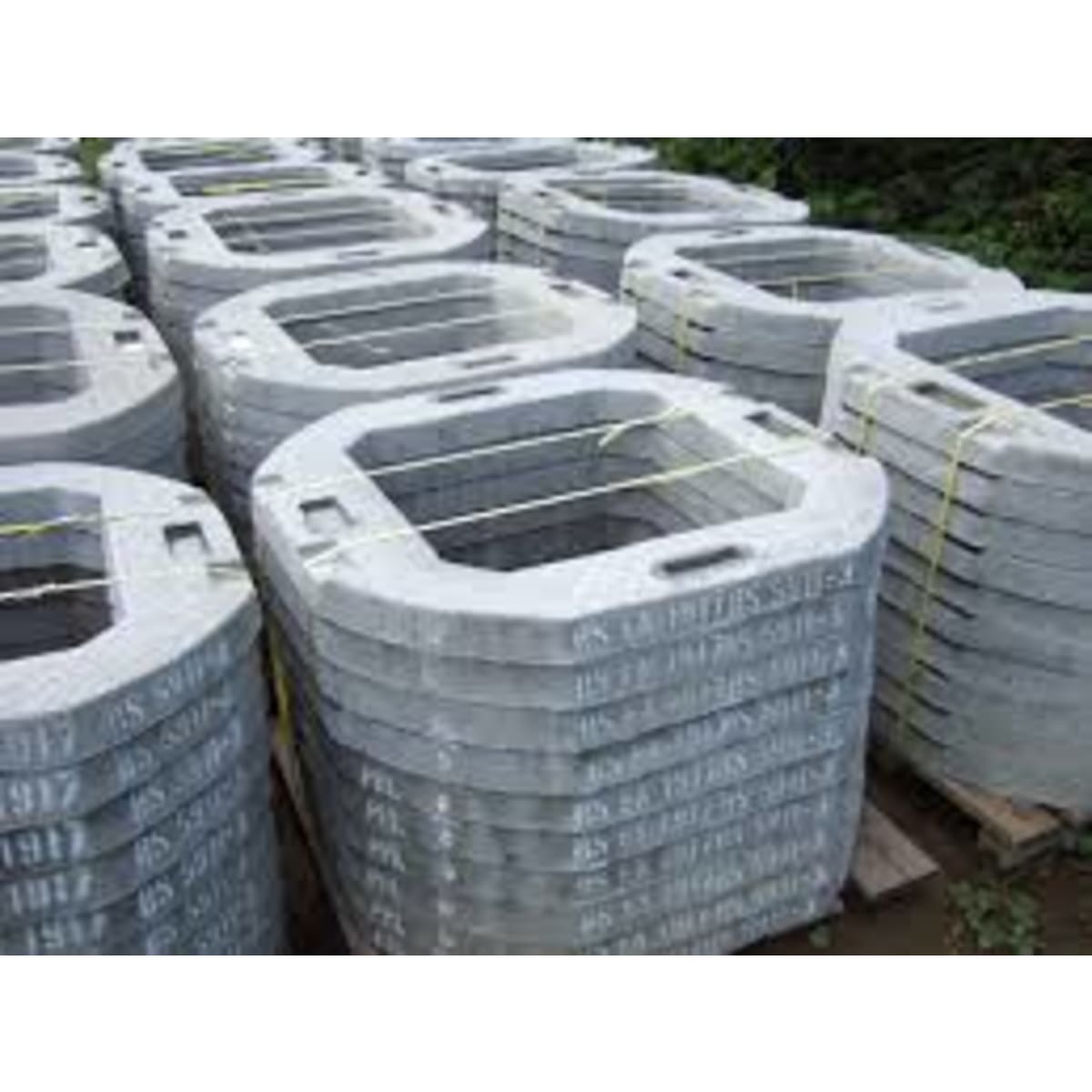

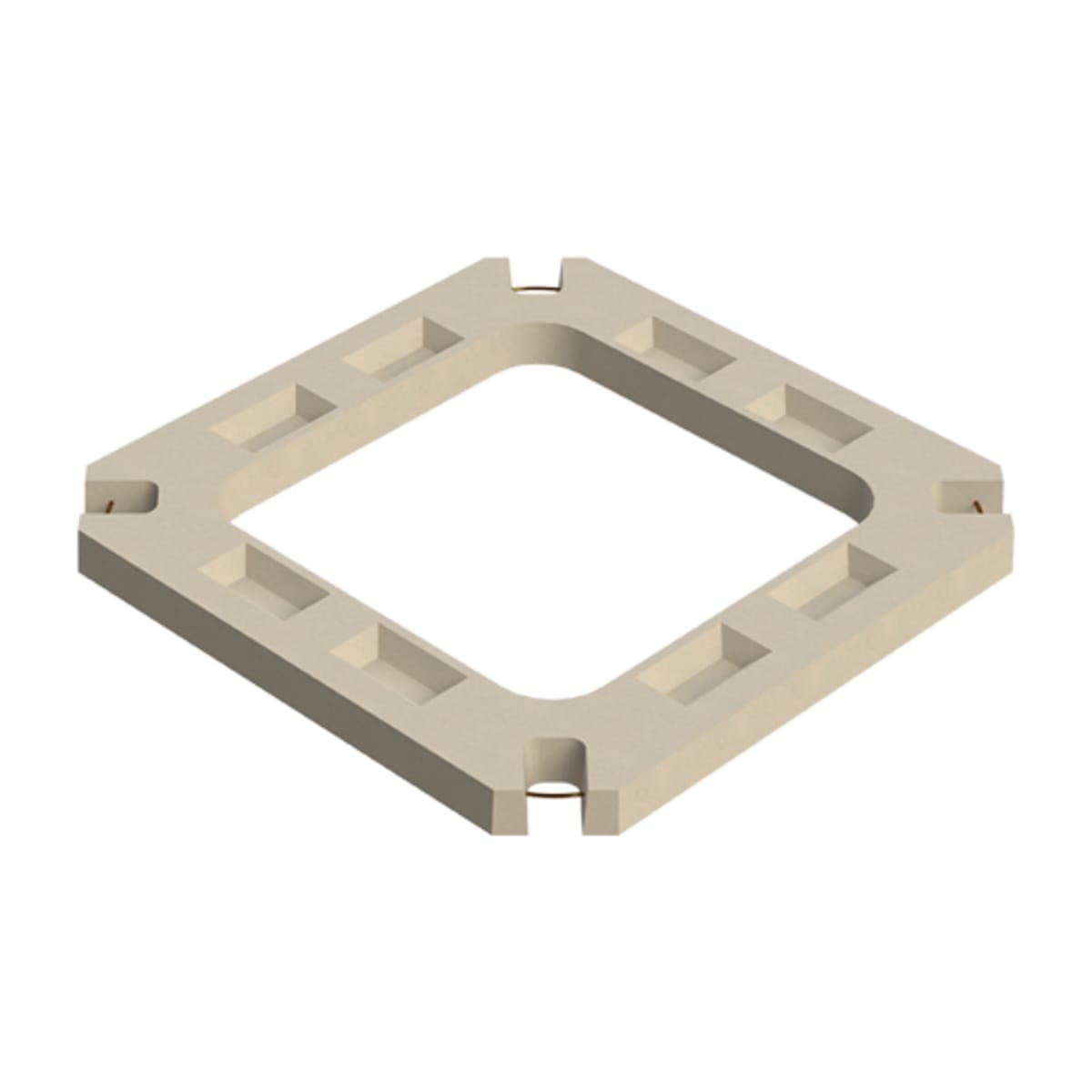

Stanton Precast Manhole Central Opening Adjusting Unit 675 x 675mm
SKU: DRCSB352
Stanton Precast 675 x 675mm central opening manhole adjusting unit also known as seating ring is manufactured from precast concrete and weighs 80kg. Engineered to regulate the ductile and frame to a required level. The adjusting unit is placed centrally and provides height alignment for the ironwork cover and frame assembly. Can withstand high operating pressure and reduces surface voids.
Features & benefits
- Manufactured with heavy duty reinforcement
- Designed to replace engineering bricks to seat cast iron cover and frame
- Effective thickness of a standard brick
- Average compressive strength to Class B engineering bricks
- Central opening
IDDRCSB352
Drainage > Concrete Drainage > Cover Slabs > Stanton Precast Manhole Central Opening Adjusting Unit 675 x 675mm
https://www.frazersolutions.co.uk/p/stanton-bonna-manhole-adjusting-unit-675-x-675mm-DRCSB352
Stanton Precast 675 x 675mm central opening manhole adjusting unit also known as seating ring is manufactured from precast concrete and weighs 80kg. Engineered to regulate the ductile and frame to a required level. The adjusting unit is placed centrally and provides height alignment for the ironwork cover and frame assembly. Can withstand high operating pressure and reduces surface voids.
Features & benefits
- Manufactured with heavy duty reinforcement
- Designed to replace engineering bricks to seat cast iron cover and frame
- Effective thickness of a standard brick
- Average compressive strength to Class B engineering bricks
- Central opening
Specifications
| Product Name | Stanton Precast Manhole Central Opening Adjusting Unit 675 x 675mm |
| Brand | Stanton Precast |
| Manufacturer Name | Stanton Precast Concrete Ltd |
| Manufacturer Part Number | DRCSB352 |
| Compliance Approvals | CE Marked |
| Materials | Precast Concrete |
| Commercial Or Domestic Use | Commercial |
| Range | Manhole Cover Slabs |
| Colour | Grey |
| Application | External |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Recyclable | Yes |
| Renewable | Yes |
| Product Weight | 80 kg |
| Thickness | 65 mm |
| Moisture Resistant | Yes |
