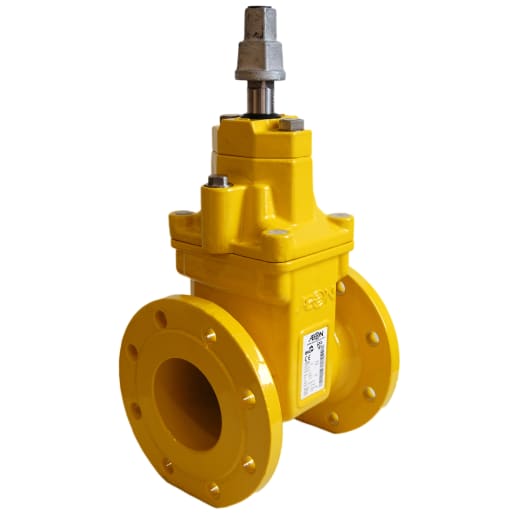

Radius RS Gas Gate Valve Type B DN250
SKU: DRBG2507
The Radius RS Gas Gate Valve Type B DN250 BS CC (flange PN16, operating pressure Mop7bar) comes with a cap top meeting all your gas pipeline requirements.
Features & benefits
- Offers extensive corrosion protection
- Full clear through bore, without wedge/gate recess, eliminating dust or debris build-up
- Stem seals can be replaced under pressure, eliminating the need to turn off the supply of gas
- Minimum of 250 µm FBE coating
- Eliminates the requirement of Denso wrapping for the whole valve
- Suitable for above and below ground installation, Valve Chambers and Gas Rigs
IDDRBG2507
Multi-Utilities > Gas > Gas Fittings > Radius RS Gas Gate Valve Type B DN250
https://www.frazersolutions.co.uk/p/radius-rs-gas-gate-valve-type-b-dn250-DRBG2507
The Radius RS Gas Gate Valve Type B DN250 BS CC (flange PN16, operating pressure Mop7bar) comes with a cap top meeting all your gas pipeline requirements.
Features & benefits
- Offers extensive corrosion protection
- Full clear through bore, without wedge/gate recess, eliminating dust or debris build-up
- Stem seals can be replaced under pressure, eliminating the need to turn off the supply of gas
- Minimum of 250 µm FBE coating
- Eliminates the requirement of Denso wrapping for the whole valve
- Suitable for above and below ground installation, Valve Chambers and Gas Rigs
Specifications
| Product Name | Radius RS Gas Gate Valve Type B DN250 |
| Brand | Radius |
| Product Type | Valve |
| Manufacturer Name | Radius Systems Ltd |
| Manufacturer Part Number | BG2507 |
| Warranty Period | 12 months |
| Materials |
Ductile iron
Stainless steel NGB rubber |
| Commercial Or Domestic Use | Commercial |
| Application | Above and below ground |
| Pack Quantity | 1 |
| Applicable Standards | GIS/V7-1 Class A/B, EN 13774 Class 1/2 |
| Recyclable | Yes |
| Product Width | 400 mm |
| Product Weight | 94.6 kg |
| Product Height | 886 mm |
| Product Length | 330 mm |
