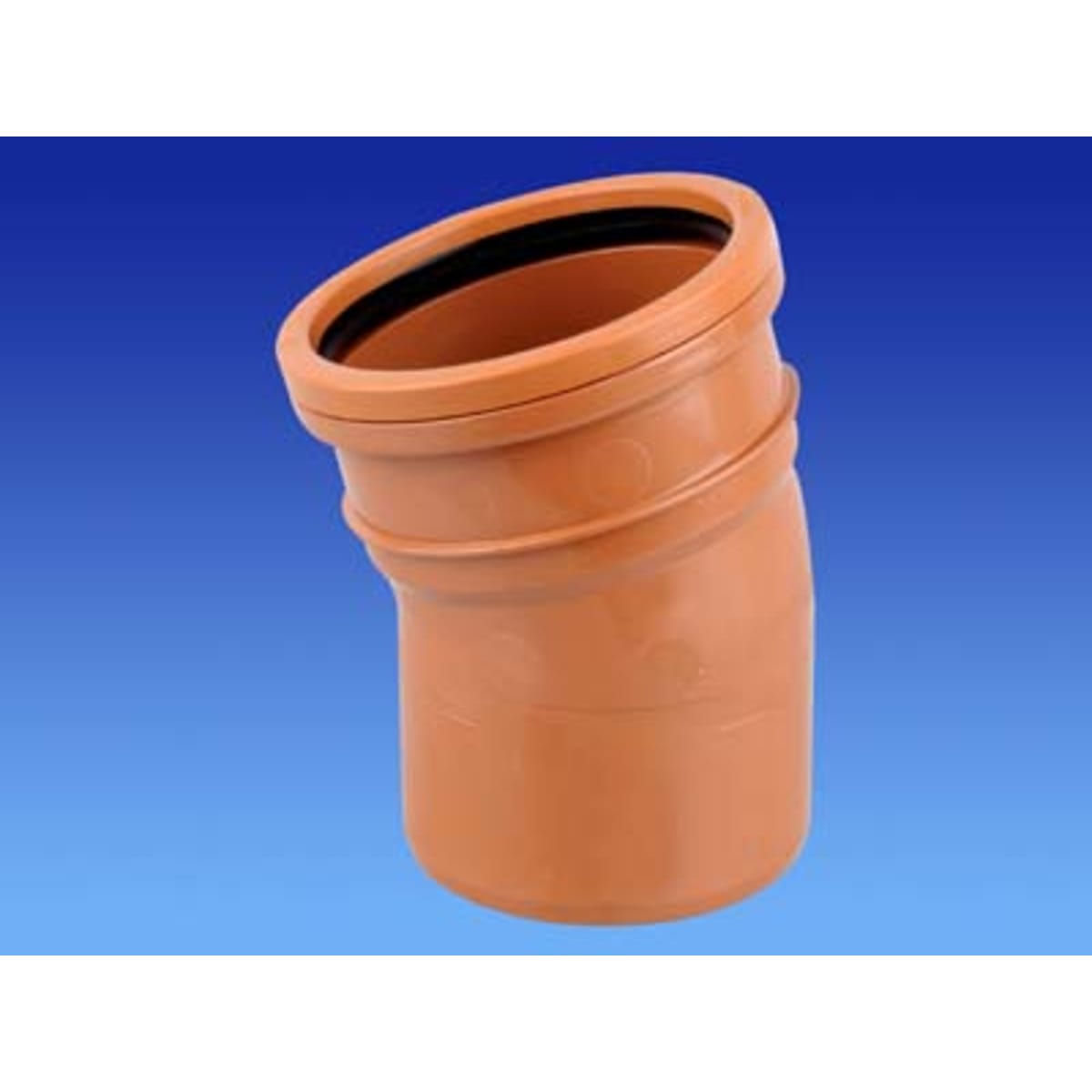

OsmaDrain 15° Single Socket Bend 75 x 160mm Brown
SKU: PO6D167Z
The OsmaDrain Single Socket Short Radius Bend 15° 75 x 160mm (L x Dia) Brown is designed with stiffness class of SN8. The product is manufactured from uPVC and is used for drainage applications at depth of 10m. The bends are easy to demount. It is supplied with sockets on all ends. The sockets are fitted with ring seals which act as both sealing and expansion joint. The pipe installation is done by cutting it cleanly, at right angles to its axis and then fitting at one end.
Features & benefits
- Recyclable
- Resistant to most acidic and alkaline solutions
IDPO6D167Z
Drainage > Underground Drainage > House Drain > OsmaDrain 15° Single Socket Bend 75 x 160mm Brown
https://www.frazersolutions.co.uk/p/osmadrain-single-socket-short-radius-bend-15-degrees-75-x-160mm-brown-PO6D167Z
The OsmaDrain Single Socket Short Radius Bend 15° 75 x 160mm (L x Dia) Brown is designed with stiffness class of SN8. The product is manufactured from uPVC and is used for drainage applications at depth of 10m. The bends are easy to demount. It is supplied with sockets on all ends. The sockets are fitted with ring seals which act as both sealing and expansion joint. The pipe installation is done by cutting it cleanly, at right angles to its axis and then fitting at one end.
Features & benefits
- Recyclable
- Resistant to most acidic and alkaline solutions
Specifications
| Product Name | OsmaDrain 15° Single Socket Bend 75 x 160mm Brown |
| Brand | Osma |
| Manufacturer Name | Wavin |
| Manufacturer Part Number | 6D167 |
| EAN | 5011479108833 |
| Compliance Approvals | BS EN 13476 & BS EN 1401-1 |
| Warranty Period | 12 months |
| Materials | PVC-U |
| Commercial Or Domestic Use | Both |
| Range | Single Socket Bend |
| Model Number | 6D167 |
| Colour | Golden brown |
| Application | internal/external |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Finish | Smooth |
| Recyclable | Yes |
| Renewable | No |
| Product Width | 190 mm |
| Product Weight | 0.85 kg |
| Product Height | 245 mm |
| Product Length | 245 mm |
| Diameter | 160 mm |
| Moisture Resistant | Yes |
| Angle | 15 degrees |
