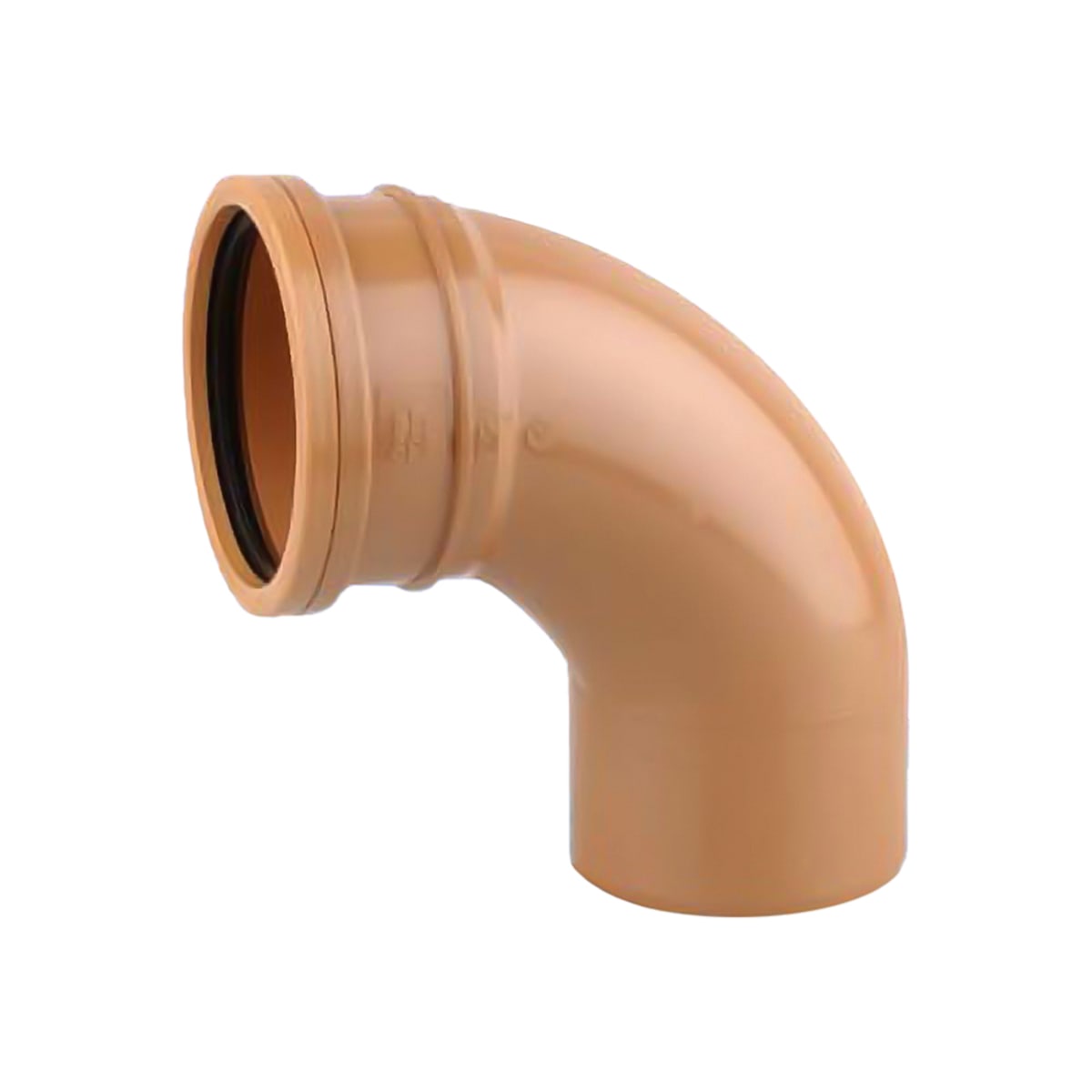

OsmaDrain 87.5° Single Socket Bend 75 x 160mm Brown
SKU: PO6D161Z
The OsmaDrain Single Socket 87.5° Bend 75 x 160mm (L x Dia) Brown is designed with stiffness class of SN8. The product is manufactured from uPVC and is used for drainage applications at depth of 10m. The bends are easy to demount. This bend is supplied with sockets on all ends. The sockets are fitted with ring seals which act as both sealing and expansion joint. The pipe installation is done by cutting it cleanly, at right angles to its axis and then fitting at one end through push fit system. It is designed with wall thickness of 4.1mm and bow range of 92.5mm.
Features & benefits
- Recyclable
- Abrasion resistant
IDPO6D161Z
Drainage > Underground Drainage > House Drain > OsmaDrain 87.5° Single Socket Bend 75 x 160mm Brown
https://www.frazersolutions.co.uk/p/osmadrain-single-socket-87-5-degrees-bend-75-x-160mm-brown-PO6D161Z
The OsmaDrain Single Socket 87.5° Bend 75 x 160mm (L x Dia) Brown is designed with stiffness class of SN8. The product is manufactured from uPVC and is used for drainage applications at depth of 10m. The bends are easy to demount. This bend is supplied with sockets on all ends. The sockets are fitted with ring seals which act as both sealing and expansion joint. The pipe installation is done by cutting it cleanly, at right angles to its axis and then fitting at one end through push fit system. It is designed with wall thickness of 4.1mm and bow range of 92.5mm.
Features & benefits
- Recyclable
- Abrasion resistant
Specifications
| Product Name | OsmaDrain 87.5° Single Socket Bend 75 x 160mm Brown |
| Brand | Osma |
| Manufacturer Name | Wavin |
| Manufacturer Part Number | 6D161 |
| EAN | 5011479108802 |
| Compliance Approvals | BS EN 13476 & BS EN 1401-1 |
| Warranty Period | 12 months |
| Materials | PVC-U |
| Commercial Or Domestic Use | Both |
| Range | Single Socket Bend |
| Model Number | 6D161 |
| Colour | Golden brown |
| Application | internal/external |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Finish | Smooth |
| Recyclable | Yes |
| Renewable | No |
| Product Width | 190 mm |
| Product Weight | 1.5 kg |
| Product Height | 337 mm |
| Product Length | 346 mm |
| Diameter | 160 mm |
| Moisture Resistant | Yes |
| Angle | 87.5 degrees |
