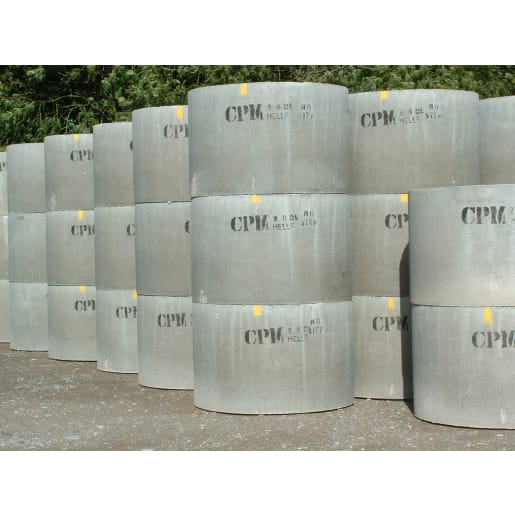

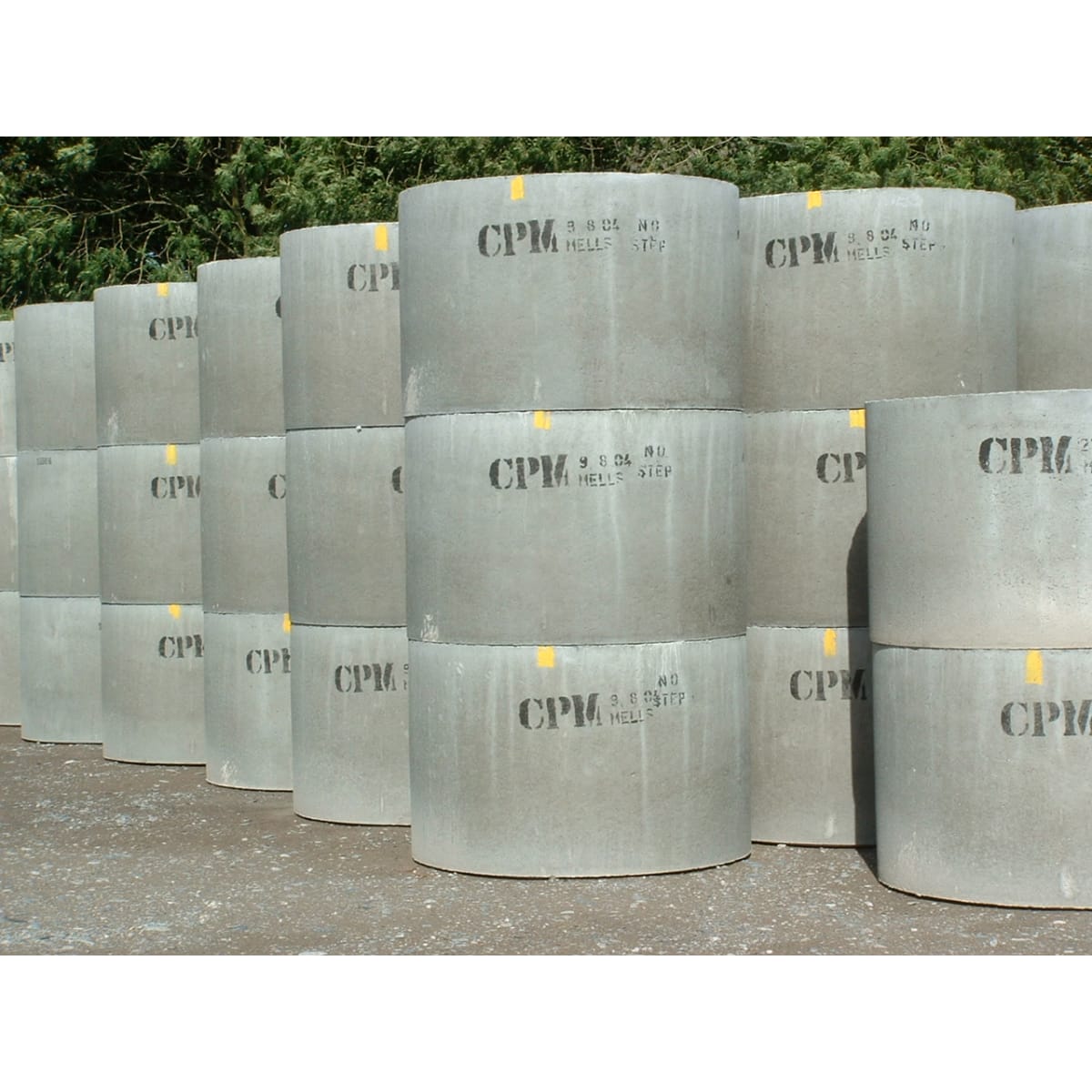

CPM Precast Concrete Manhole Chamber Ring 1350 x 500mm
SKU: DRCGR093
The CPM Precast Concrete Manhole Chamber Ring 1350 x 500mm (Dia x D) provides access to the surface water drainage system. It is manufactured from concrete. Designed with tongue and groove joints to accommodate flexible jointing strip or cement mortar. The inner surface of the chamber ring is designed with double steps.
Features & benefits
- High compressive strength withstanding heavy traffic
- Marshalls CPM manhole chamber sections are supplied with 3 nominal 50mm diameter holes for lifting purposes
- Available in BIM (Building Information Modelling)
IDDRCGR093
Drainage > Concrete Drainage > Chamber Rings > CPM Precast Concrete Manhole Chamber Ring 1350 x 500mm
https://www.frazersolutions.co.uk/p/cpm-precast-concrete-manhole-chamber-ring-1350-x-500mm-DRCGR093
The CPM Precast Concrete Manhole Chamber Ring 1350 x 500mm (Dia x D) provides access to the surface water drainage system. It is manufactured from concrete. Designed with tongue and groove joints to accommodate flexible jointing strip or cement mortar. The inner surface of the chamber ring is designed with double steps.
Features & benefits
- High compressive strength withstanding heavy traffic
- Marshalls CPM manhole chamber sections are supplied with 3 nominal 50mm diameter holes for lifting purposes
- Available in BIM (Building Information Modelling)
Specifications
| Product Name | CPM Precast Concrete Manhole Chamber Ring 1350 x 500mm |
| Brand | CPM |
| Manufacturer Name | Marshalls CPM |
| Manufacturer Part Number | 20221 |
| Compliance Approvals | BS EN1917:2002 BS5911-3:2010 |
| Materials | Precast Concrete |
| Commercial Or Domestic Use | Commercial |
| Range | Chamber Rings |
| Application | Concrete Drainage |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Product Weight | 540 kg |
| Product Depth | 500 mm |
| Diameter | 350 mm |
