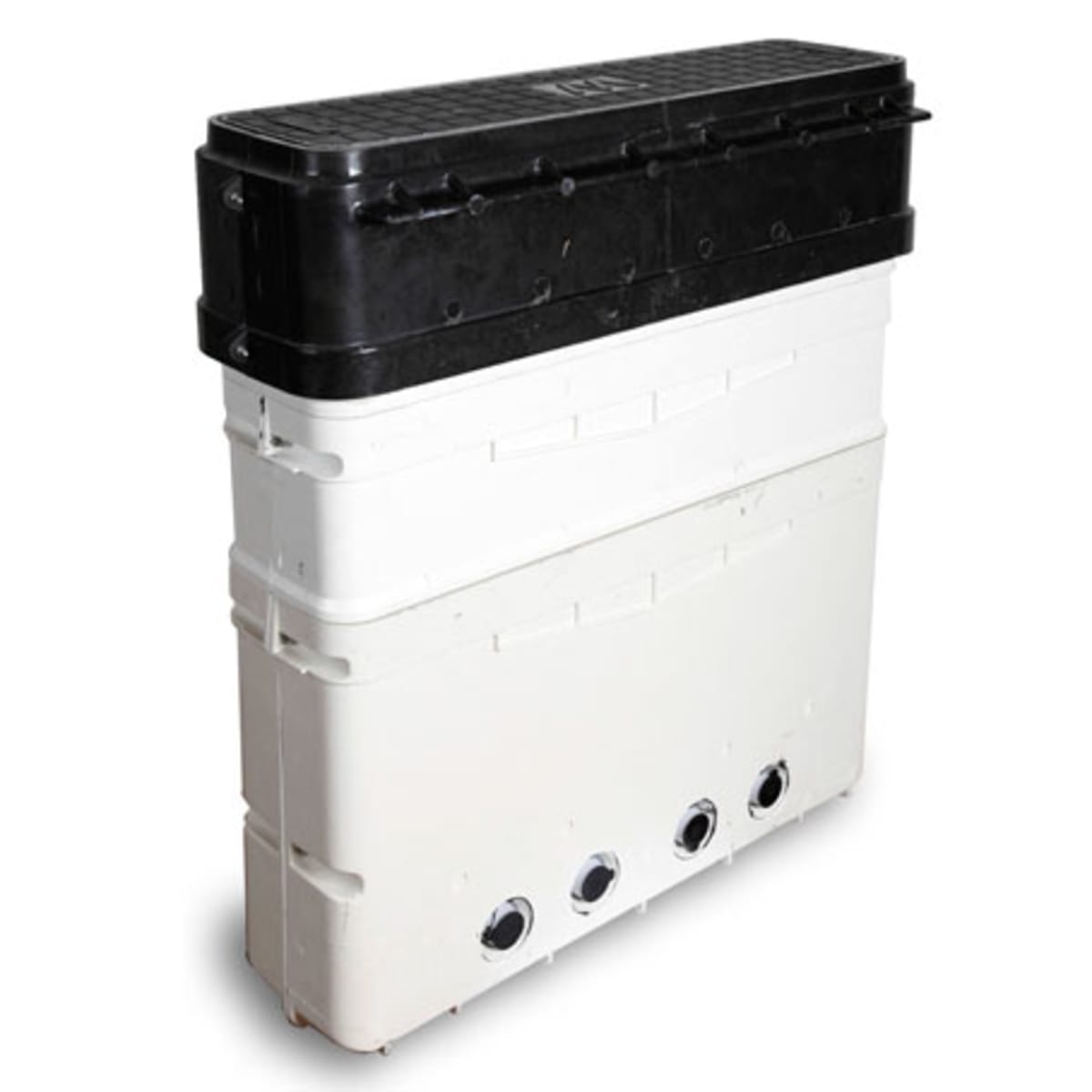

Atplas 6 Port Multi Manifold Box Rising Spindle
SKU: APC00642
The Atplas 6-Port Multi Manifold Box Rising Spindle has a stop valve design that helps minimise damage through possible over-tightening, while the outlets on the multi manifold box have an ‘eye ball’ angular adjustment to help installation in congested trench conditions. Connection: 2” BSP Female by 6 x 25mm PF.
Features & benefits
- Up to 6° tilt
- 38mm of final height adjustment on the surface box
- Alignment is both easy and accurate with surface levels and gradients
- Damage due to over over-tightening is minimised
- Height adjustement from 410 - 770mm
IDAPC00642
Multi-Utilities > Water > Boundary Boxes > Atplas 6 Port Multi Manifold Box Rising Spindle
https://www.frazersolutions.co.uk/p/atplas-6-port-multi-manifold-box-rising-spindle-APC00642
The Atplas 6-Port Multi Manifold Box Rising Spindle has a stop valve design that helps minimise damage through possible over-tightening, while the outlets on the multi manifold box have an ‘eye ball’ angular adjustment to help installation in congested trench conditions. Connection: 2” BSP Female by 6 x 25mm PF.
Features & benefits
- Up to 6° tilt
- 38mm of final height adjustment on the surface box
- Alignment is both easy and accurate with surface levels and gradients
- Damage due to over over-tightening is minimised
- Height adjustement from 410 - 770mm
Specifications
| Product Name | Atplas 6 Port Multi Manifold Box Rising Spindle |
| Brand | Atplas |
| Manufacturer Name | Talis UK |
| Manufacturer Part Number | APC00642 |
| Compliance Approvals | WRAS Approved |
| Materials | Glass Filled Polyester DMC (Dough Moulding Compound) |
| Range | Below Ground Boundary Boxes |
| Colour | Beige / Black |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Product Width | 748 mm |
| Product Weight | 45 kg |
| Product Height | 770 mm |
| Product Depth | 286 mm |
| Jointing System | Push_Fit |
