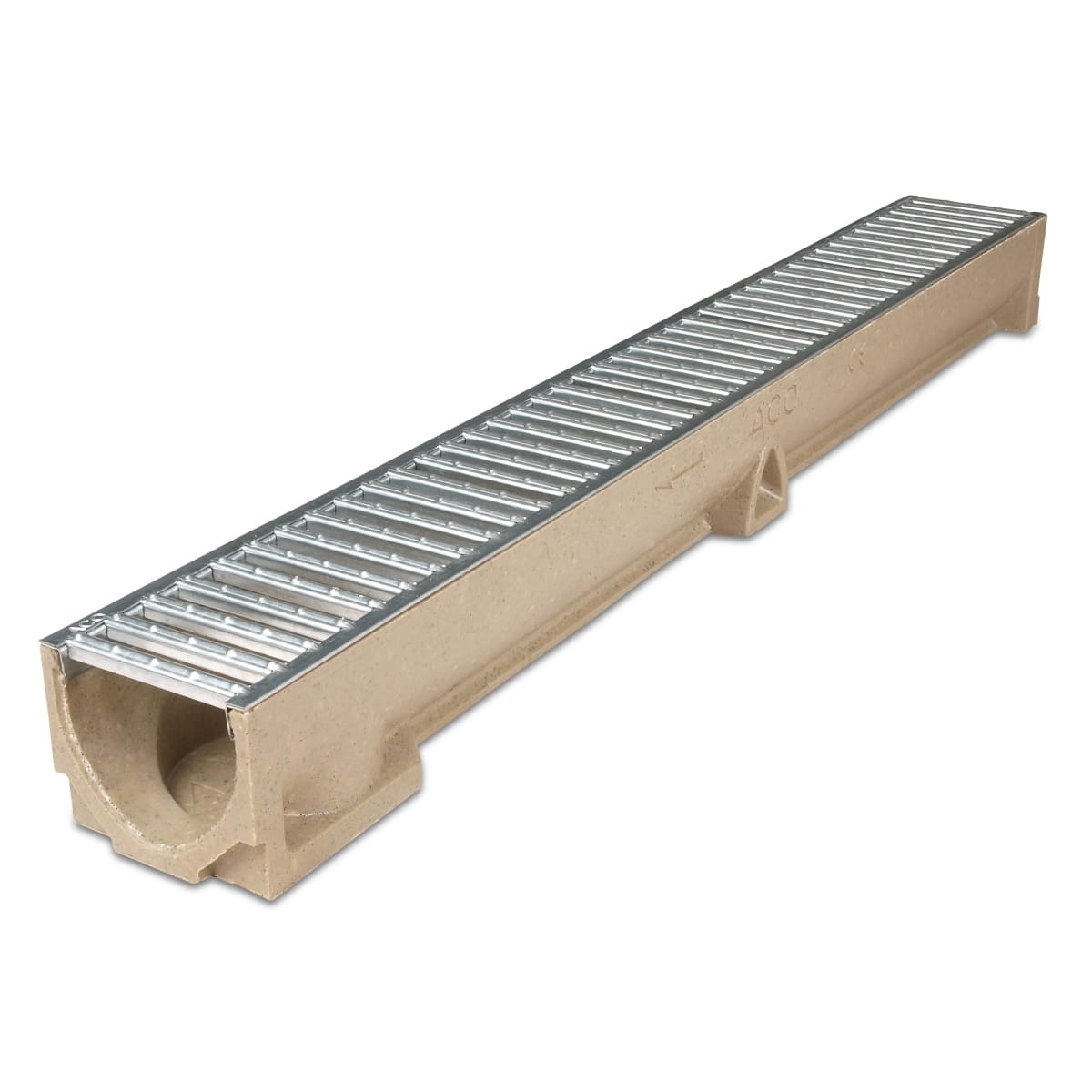

ACO RainDrain Galvanised Steel Grating Channel 1m x 118mm
SKU: DRAC4700
The ACO RainDrain® A15 Channel with Galvanised Steel Grating 1000 x 118 x 97mm (L x W x D), is manufactured from Vienite®, a polymeric based recycled material. Strong and lightweight design improves stability and anchors product into concrete surround, which provides high chemical resistance. Suitable for domestic applications such as garage thresholds, patios and paths, pedestrian precincts.
Features & benefits
- Polymer concrete channel with galvanised steel grating
- Single outlet knock-out
- CE marked and fully certified to Load Class A 15 BS EN 1433:2002
- Easy male/female channel connection
- ACO RainDrain channel assembly
- Lightweight
- Channels interlock for quick and easy installation
IDDRAC4700
Drainage > Water Management > Domestic Linear Drainage > ACO RainDrain Galvanised Steel Grating Channel 1m x 118mm
https://www.frazersolutions.co.uk/p/aco-raindrain-drainage-with-galvanised-steel-grating-a15-1000-x-118mm-DRAC4700
The ACO RainDrain® A15 Channel with Galvanised Steel Grating 1000 x 118 x 97mm (L x W x D), is manufactured from Vienite®, a polymeric based recycled material. Strong and lightweight design improves stability and anchors product into concrete surround, which provides high chemical resistance. Suitable for domestic applications such as garage thresholds, patios and paths, pedestrian precincts.
Features & benefits
- Polymer concrete channel with galvanised steel grating
- Single outlet knock-out
- CE marked and fully certified to Load Class A 15 BS EN 1433:2002
- Easy male/female channel connection
- ACO RainDrain channel assembly
- Lightweight
- Channels interlock for quick and easy installation
Specifications
| Product Name | ACO RainDrain Galvanised Steel Grating Channel 1m x 118mm |
| Brand | RainDrain |
| Manufacturer Name | ACO |
| Manufacturer Part Number | 47000 |
| EAN | 5030810470002 |
| Compliance Approvals | CE marked and fully certified to load Class A 15 BS EN 1433:2002 |
| Materials |
Steel
Vienite |
| Commercial Or Domestic Use | Domestic |
| Range | Channel Drains |
| Model Number | 47000 |
| Colour | Silver |
| Application | External |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Finish | Galvanised |
| Recyclable | Yes |
| Product Width | 118 mm |
| Product Weight | 7.38 kg |
| Product Length | 1000 mm |
| Product Depth | 97 mm |
| Moisture Resistant | Yes |
