ACO MultiDrain M150D 306 Multifunctional End Cap 185mm
SKU: ACO23159

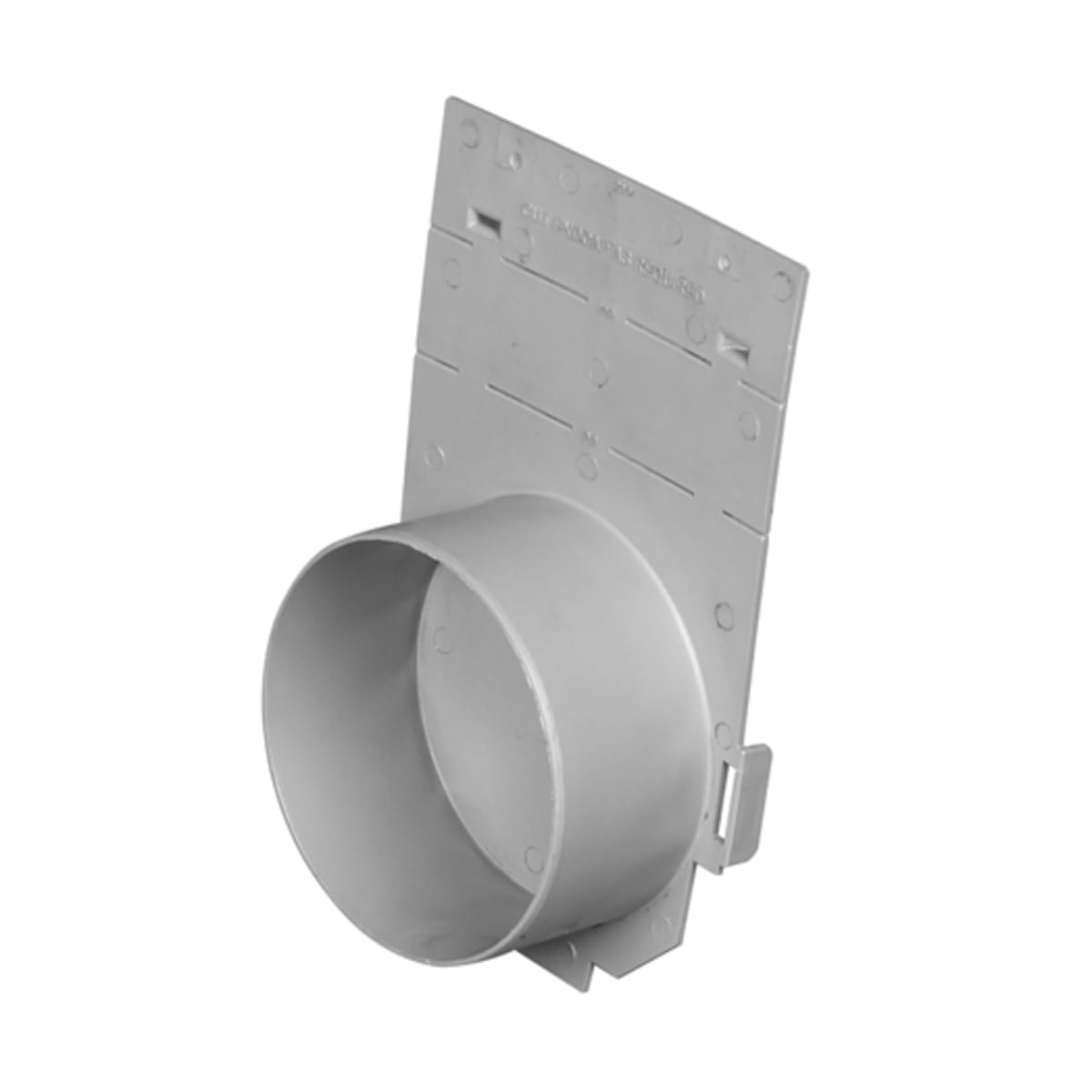

The ACO MultiDrain™ M150D No. 306 Multifunctional End Cap 185 x 310/100mm (W x D), with a spigot of 75mm in length. The multifunctional endcap can be cut down to suit all M150D channels. It is A multifunctional end cap, provided for each channel width that is designed to be used with all channel heights in each range. Manufactured from polypropylene, these versatile endcaps can be adjusted on site to perform the function of a closing endcap or as an inlet/outlet endcap for connection to Ø110mm (100mm wide bore) or Ø160mm (150mm and 200mm wide bore) PVC-U pipe.
Features & benefits
- Can be cut down to suit all channel depths
- Provides a closing or outlet option to Ø110mm or Ø160mm
- The endcap is fastened to the channel by two clips
- Can be connected to either male or female channel end
IDACO23159
Drainage > Water Management > Commercial Linear Drainage > ACO MultiDrain M150D 306 Multifunctional End Cap 185mm
https://www.frazersolutions.co.uk/p/aco-multidrain-m150d-306-multifunctional-end-cap-185mm-ACO23159
The ACO MultiDrain™ M150D No. 306 Multifunctional End Cap 185 x 310/100mm (W x D), with a spigot of 75mm in length. The multifunctional endcap can be cut down to suit all M150D channels. It is A multifunctional end cap, provided for each channel width that is designed to be used with all channel heights in each range. Manufactured from polypropylene, these versatile endcaps can be adjusted on site to perform the function of a closing endcap or as an inlet/outlet endcap for connection to Ø110mm (100mm wide bore) or Ø160mm (150mm and 200mm wide bore) PVC-U pipe.
Features & benefits
- Can be cut down to suit all channel depths
- Provides a closing or outlet option to Ø110mm or Ø160mm
- The endcap is fastened to the channel by two clips
- Can be connected to either male or female channel end
Specifications
| Product Name | ACO MultiDrain M150D 306 Multifunctional End Cap 185mm |
| Brand | MultiDrain |
| Manufacturer Name | ACO |
| Manufacturer Part Number | 23159 |
| EAN | 5030810231597 |
| Compliance Approvals | CE marked and fully certified to Load Class D 400 BS EN 1433:2002 |
| Materials | Polypropylene |
| Commercial Or Domestic Use | Commercial |
| Range | End Caps |
| Model Number | 23159 |
| Colour | Grey |
| Application | External |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Recyclable | Yes |
| Product Width | 185 mm |
| Product Weight | 0.3 kg |
| Product Depth | 310 mm |
| Moisture Resistant | Yes |
