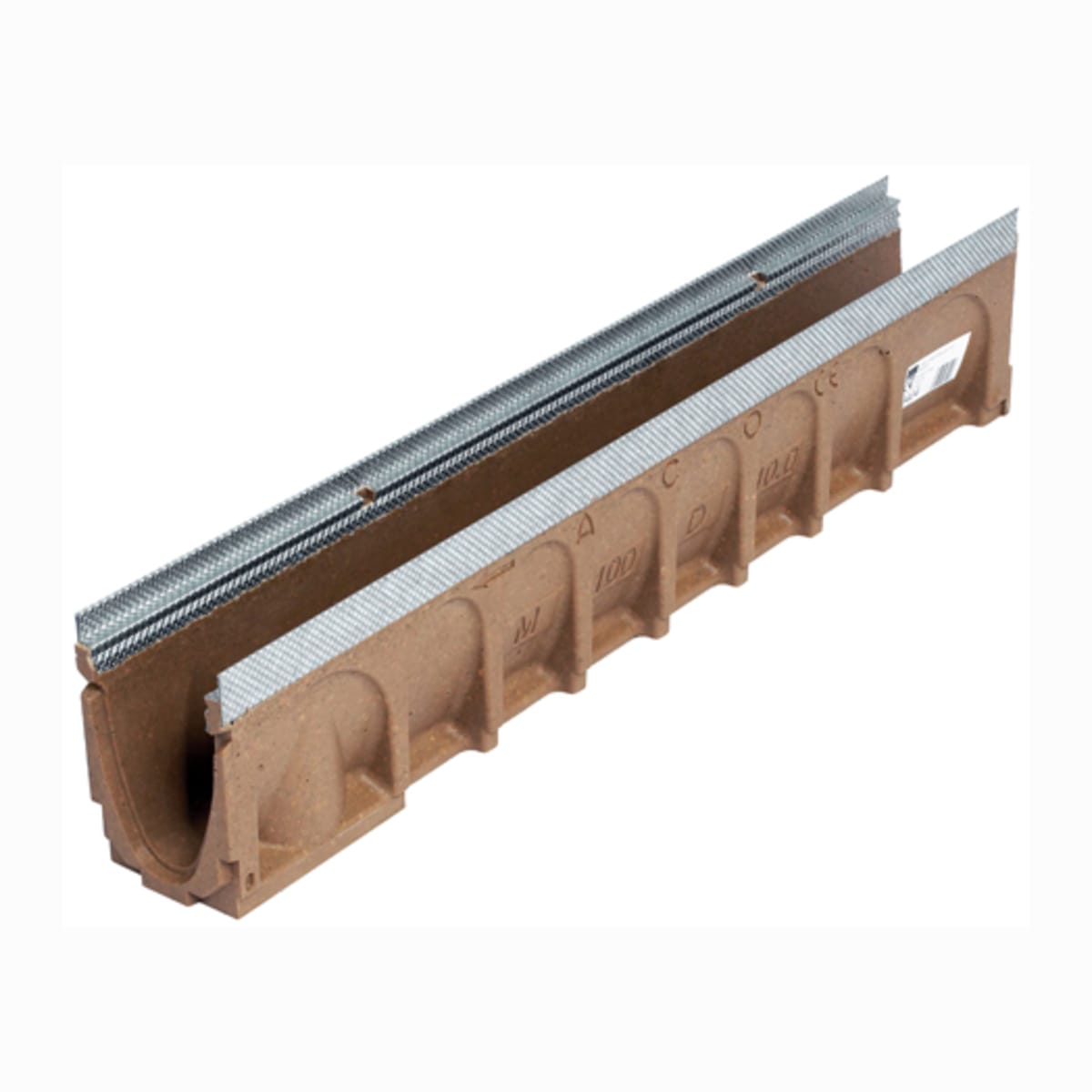

ACO MultiDrain M100D 10.0 Channel Galvanised Rail 1m x 135 x 200mm
SKU: ACO23100
The ACO MultiDrain™ M100D No. 10.0 Channel with Galvanised Rail 1000 x 135 x 200mm (L x W x D) is manufactured from Vienite®, a polymeric based recycled material. Strong and lightweight design improves stability and anchors product into concrete surround, which provides high chemical resistance. The channel is provided with integral galvanised steel protective edge rails. For enhanced durability, these rails are manufactured from UltraSTEEL™, a unique material that has improved strength over plain steel. Channels are for use with ACO Drainlock™ bar-less locking gratings and covers.
Features & benefits
- CE marked to Load Class D 400 (Not suitable for carriageways of public roads or motorways)
- Sealant groove for simple watertight installations
- Protective UltraSTEEL™ galvanised edge rails for improved strength and bonding between channel and surface materials
- Strong and lightweight design, improves stability and anchors product into concrete surround
- Channel supplied with a preformed Ø110mm knoc-kout for vertical outlet
IDACO23100
Drainage > Water Management > Commercial Linear Drainage > ACO MultiDrain M100D 10.0 Channel Galvanised Rail 1m x 135 x 200mm
https://www.frazersolutions.co.uk/p/aco-multidrain-m100d-galvanised-10-0-channel-1000-x-135mm-ACO23100
The ACO MultiDrain™ M100D No. 10.0 Channel with Galvanised Rail 1000 x 135 x 200mm (L x W x D) is manufactured from Vienite®, a polymeric based recycled material. Strong and lightweight design improves stability and anchors product into concrete surround, which provides high chemical resistance. The channel is provided with integral galvanised steel protective edge rails. For enhanced durability, these rails are manufactured from UltraSTEEL™, a unique material that has improved strength over plain steel. Channels are for use with ACO Drainlock™ bar-less locking gratings and covers.
Features & benefits
- CE marked to Load Class D 400 (Not suitable for carriageways of public roads or motorways)
- Sealant groove for simple watertight installations
- Protective UltraSTEEL™ galvanised edge rails for improved strength and bonding between channel and surface materials
- Strong and lightweight design, improves stability and anchors product into concrete surround
- Channel supplied with a preformed Ø110mm knoc-kout for vertical outlet
Specifications
| Product Name | ACO MultiDrain M100D 10.0 Channel Galvanised Rail 1m x 135 x 200mm |
| Brand | MultiDrain |
| Manufacturer Name | ACO |
| Manufacturer Part Number | 23100 |
| EAN | 5030810231009 |
| Compliance Approvals | CE marked and fully certified to Load Class D 400 BS EN 1433:2002 |
| Materials |
Steel
Vienite |
| Commercial Or Domestic Use | Commercial |
| Range | Channel Drains |
| Model Number | 23100 |
| Colour | Silver |
| Application | External |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Finish | Galvanised |
| Recyclable | Yes |
| Product Width | 135 mm |
| Product Weight | 16.2 kg |
| Product Length | 1000 mm |
| Product Depth | 200 mm |
| Moisture Resistant | Yes |
